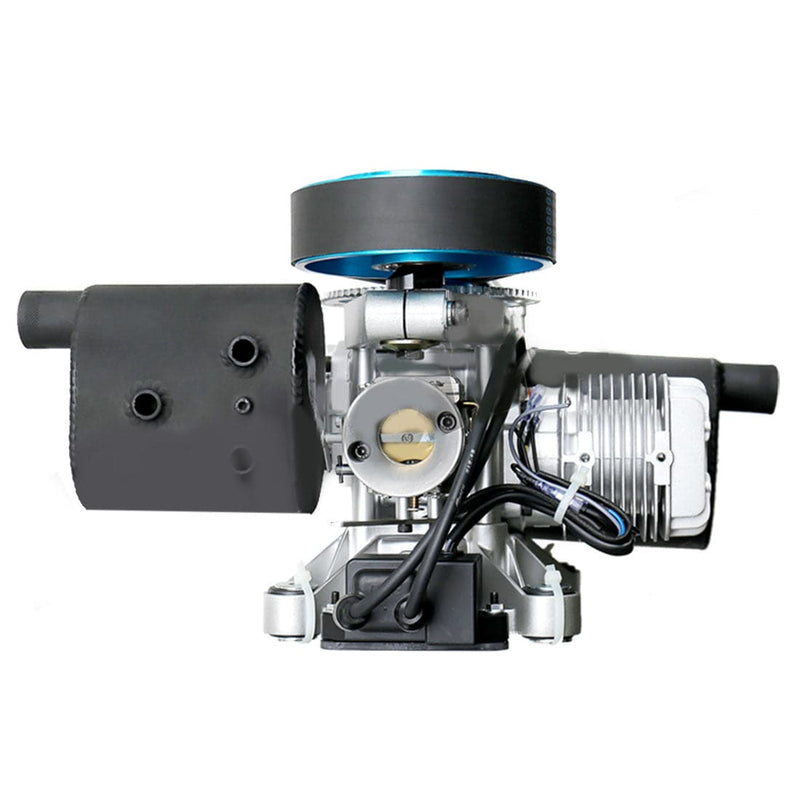

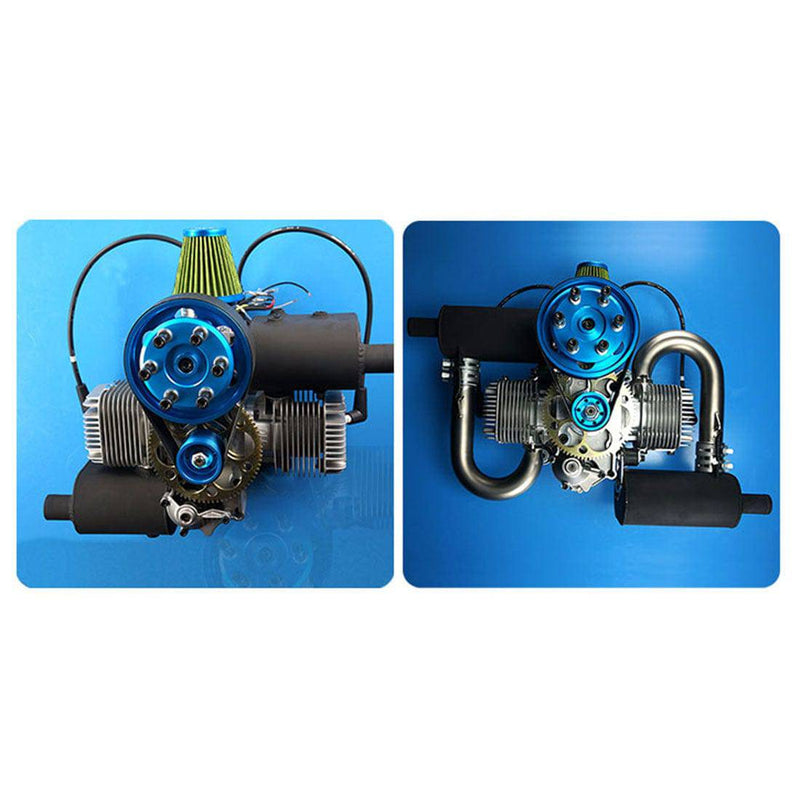

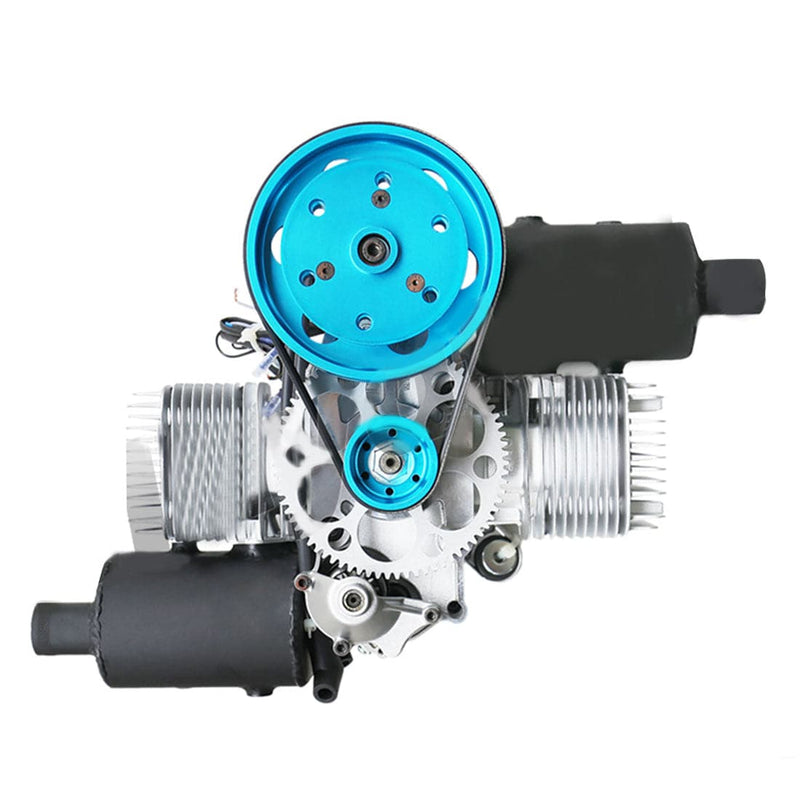

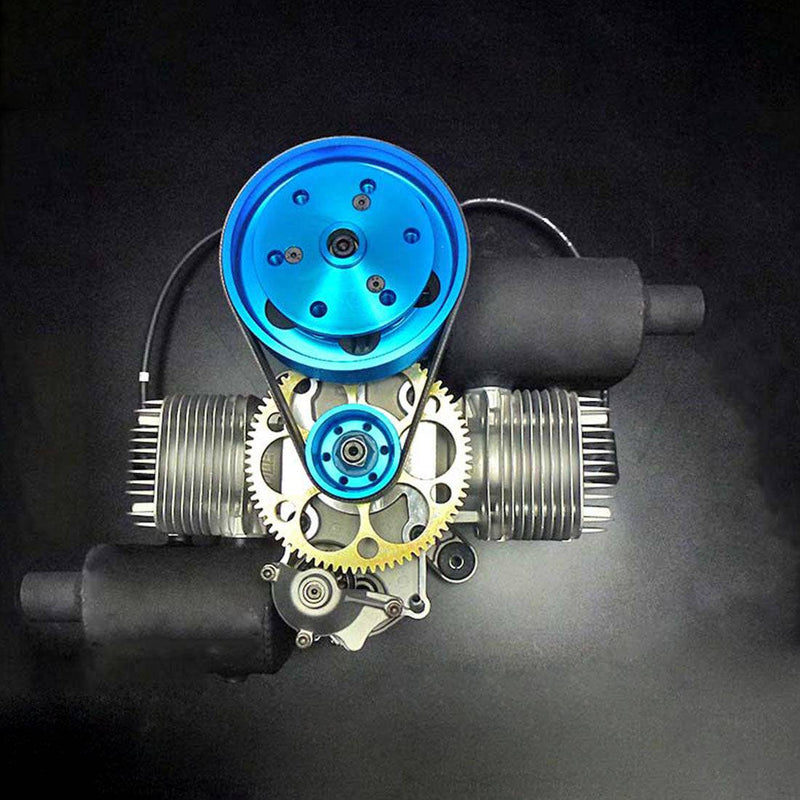

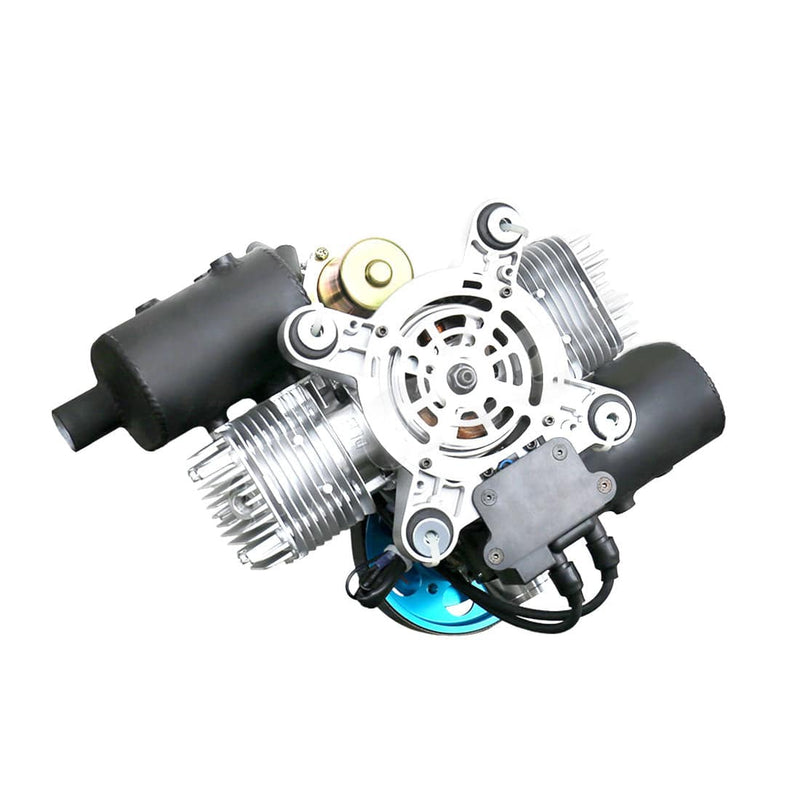

DLE200 Powered Parachutes Gasoline Engine Two-cylinder Two Stroke Air Cooled Electric Start (Standard Exhaust Pipe)
Features:
.This engine is suitable for drones, powered parachutes, power delta wings, ultra-light experimental aircraft, etc.
.Unique structure design, exquisite technology, lightweight and compact, easy to start
.The DLE200 engine will give you an unprecedented flying experience
.Engine Model: DLE200 gasoline engine, two cylinders, two stroke, belt transmission, natural air cooling, electric start
.Instructions: This engine is not a toy! If you are buying this type of engine for the first time and want to complete your flight with your own efforts, please stop your dangerous behavior immediately and seek help from experienced people. Improper use and maintenance may result in engine damage and casualties. Installation, commissioning and maintenance of the engine requires the commissioning of experienced personnel to operate. DLE does not assume any loss due to improper operation and maintenance! These engines are used for aircraft that do not require a certificate of airworthiness. When using, unexpected parking may occur, and users need to have emergency measures to deal with air parking. DLE does not bear any loss caused by accidental parking in the air! The engine is not covered by product liability insurance and we cannot guarantee against equipment failure. It is dangerous to use it, accidents may cause property damage, physical injury and even death. If you are not willing to take all the risks in use, please do not start the engine!
.Please refer to the instruction for details
.Suitable for people over 14 years old
Specifications:
.Color: As Shown
.Material: Metal
.Type: Two Strokes
.Bore: 55mm
.Stroke: 42mm
.Displacement: 200cc
.Power: 20HP/7500rpm
.Compression Ratio: 10:1
.Reduction Ratio: 1:2.7
.Transmission Type: Belt
.Starting Mode: Electric Start
.Net Weight (Exhaust Pipe): 10.3kg
.Standard Exhaust Pipe Weight: 1.1kg
.Spark Plug: DLE-8A
.Fuel: 93#, 97# Gasoline
.Alternator Output: 14V 1A
.Premium Alternator Output: 14V 4A
.Propeller: 1220mm
.Suitable for Weight of Pilot: 80kg

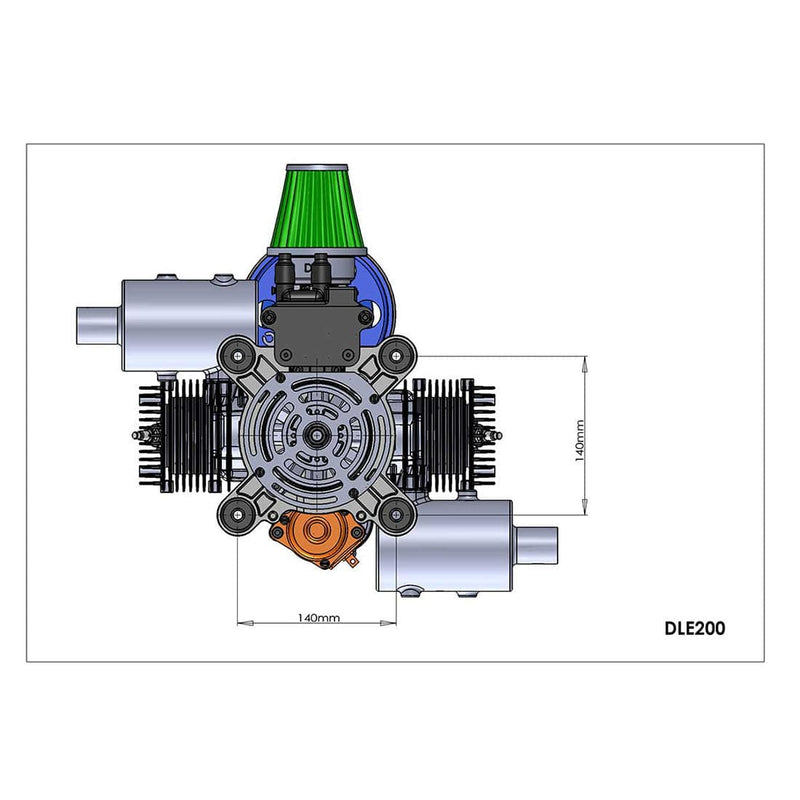

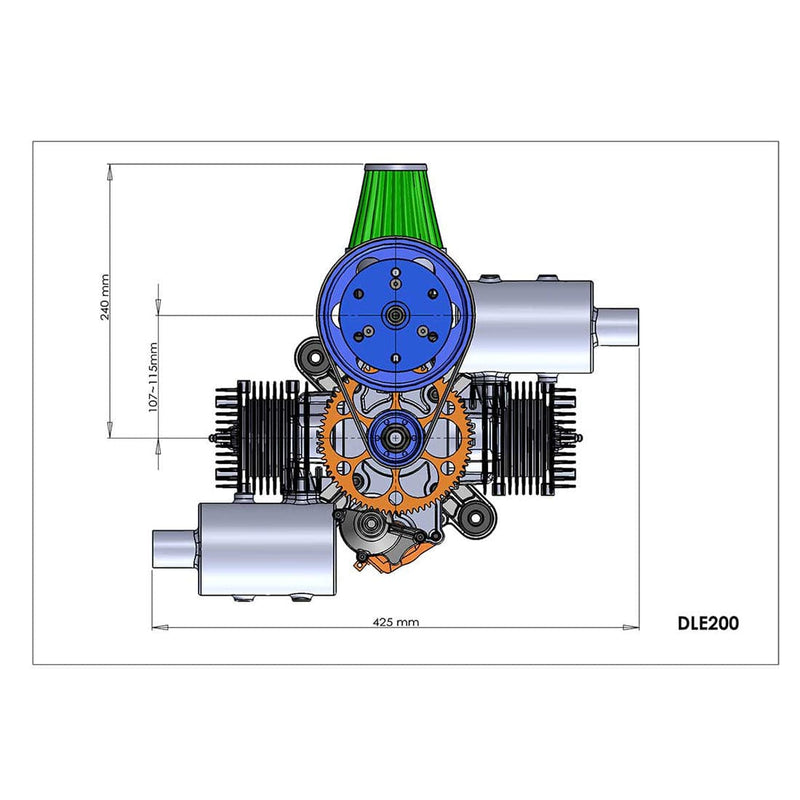

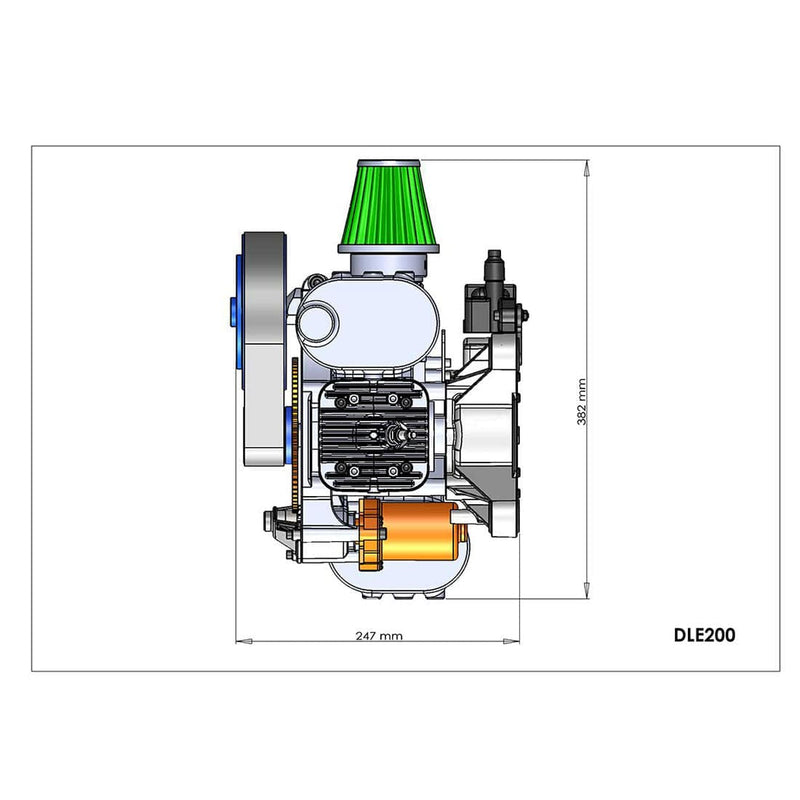

.Product Size: 42.5 x 24.7 x 38.2cm
.Product Weight: 11400g
.Package Weight: 15000g
.Packing: Box

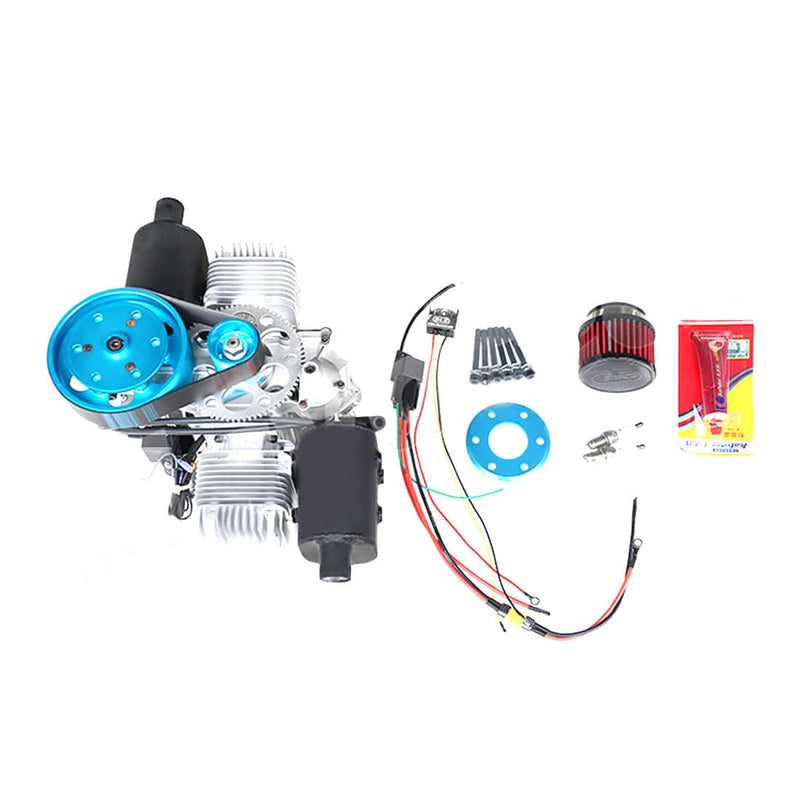

Package Content:
.1 x Gasoline Engine Kit
