Stark 40cm Height High Voltage Inductive Arc Musical Tesla Coil Experimental Physics Toy
Features:

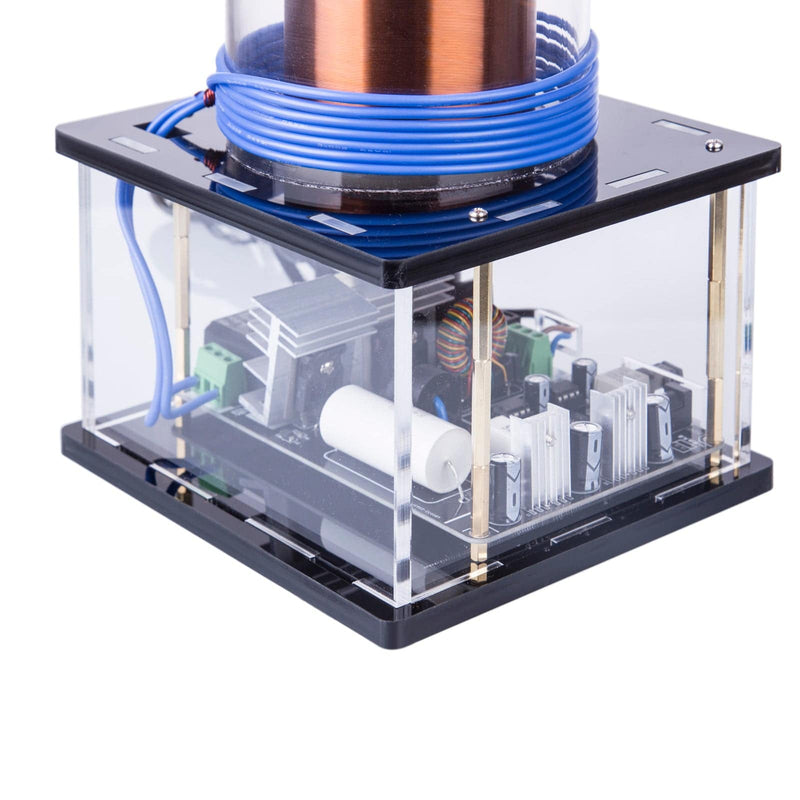

.Design Original Intention: This large Tesla coil is small and easy to carry. It will not be dangerous if it is directly plugged into 220V. It does not need to be connected to the transformer. The demonstration effect is good and the power is controllable. Large integrated heat sink, extremely low heating rate, integrated feedback and insurance on the circuit board, safe and secure. Dual mode arc extinguishing, you can input square wave music, you can also manually control, you can manually adjust the frequency and pulse width.
.Features: Small size, high power; easy to use, arc extinguishing battery; multiple insurance, safety and stability; low heat, high stability.
.How to Use: First connect the product with a ground wire, connect one end to the screw at the end of the product, and connect the other end to a well-grounded metal (water pipe, fire pipe); connect the product and the arc extinguishing controller with an optical fiber cable, and turn on the arc extinguishing controller, Turn off the arc extinguishing after adjusting the pulse width to the minimum; connect the main body of the product with 24V and 220V power respectively; confirm that the discharge needle is installed correctly before use.
.Note:
1. The product is high voltage, please do not approach it during discharge; please turn off the arc extinguishing after use, and then move the product; the ground wire must be connected well.
2. Tesla Coils are potentially dangerous devices and precautions must be taken before every operation to help prevent possible damage to property, injury, or death. Unqualified persons should never be allowed to operate the Tesla Coil. Prior knowledge of high voltage electrical safety is required, and assumed.
.Significance and Value:
This product can be used for teaching demonstrations, explaining the knowledge of Tesla coils, or as a desktop technology ornament. It is more exhibitable. It is also suitable as a popular science educational toy gift for students and children. It is magical, fun and exciting Learning enthusiasm and interest in scientific exploration, cultivate innovation ability and creativity.
.For Age: 12+
Specifications:
.Color: As Shown
.Material: Metal + Acrylic + Electronic Components
.Voltage: 220V
.Power: 800W

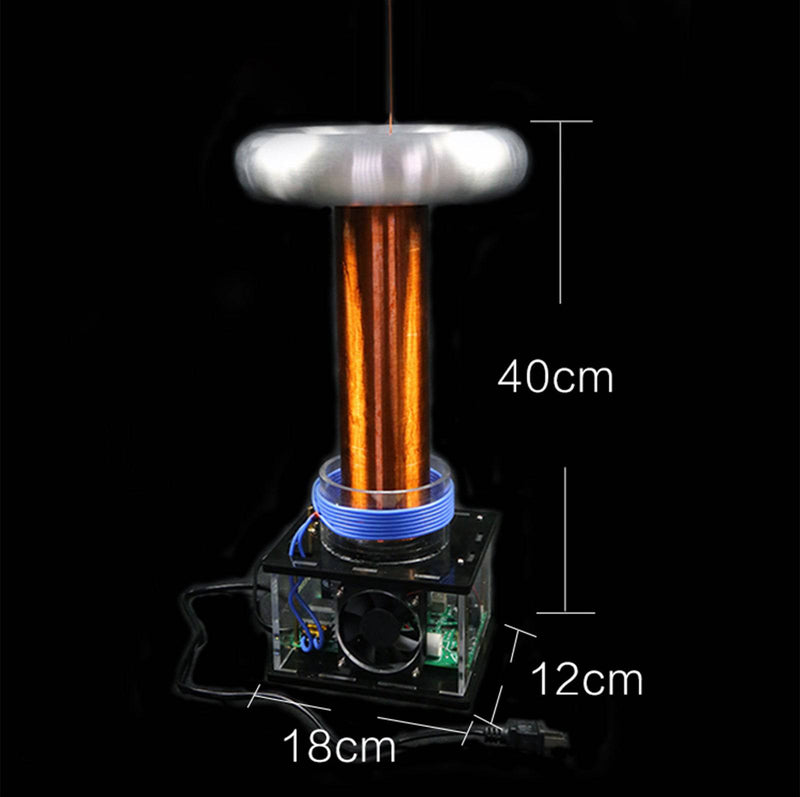

.Product Dimensions: 12 x 18 x 40cm
.Product Weight: 2000g
.Package Dimensions: 15 x 20 x 45cm
.Package Weight: 3200g
.Packing: Box
Package Content:
.1 x Large Tesla
Well packaged, and arrived in great condition. The instructions are terrible and so is customer support in answering questions.
If you live in North America you will either need a 220v plug or pick up a something like I did, a VC2000W PowerBright 2000 Watts Voltage Transformer / Converter × 1 that can step power up or down. Converts 120 to 240 nicely.
Plug the 24 volt converter into the 120v socket, and the main power cord into the 220v socket. The 24v converter is rated for 120 to 240 volts. Make sure it's grounded properly and putting the ground wire into the ground does not work. I tried it and it shorts to the primary. I grounded mine to the gas line.
The switches are upside down. Flipped up is off and flipped down is on. Make sure the black dials are turned all the way left before turning power on. Flip the switch to the far right on (down) first, then flip the switch next to in on (down).
The nob to the far left controls the frequency and the nob second from the arc length. I still don't know what the third nob does. Work them together starting with frequency then arc length. I works like a charm.
Before powering off, turn the frequency and arc length nobs left alternately till they are both fully turned all the way left. Then, turn the right switch off (up) then turn the switch next to it off (up). Turn off or unplug the power.
